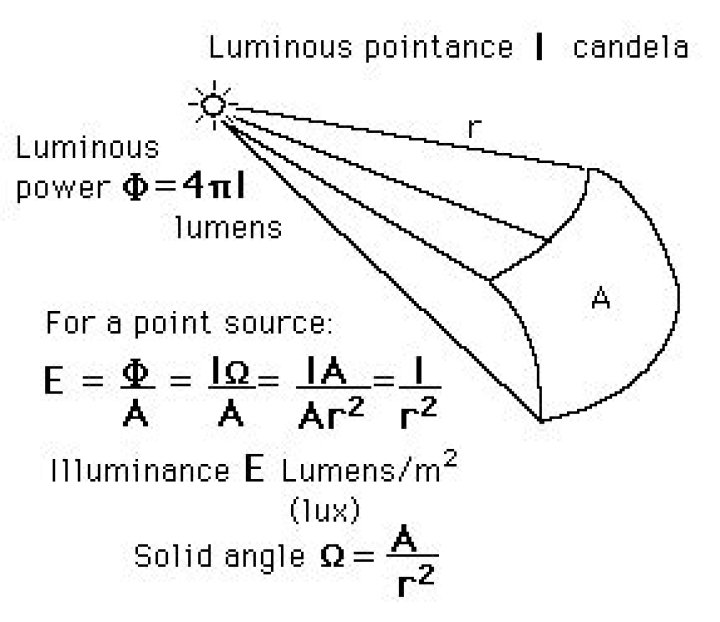

Which is power per unit solid angle or candela?

Power Per Unit Solid Angle W/sr Candela (cd) Power Per Unit Area Per Unit Solid Angle W/m2·sr cd/m2= lm/m2·sr = nit W. Wang Conversion

What is the photometric power of a 5MW laser pointer?

For example, the photometric power of a 5mW red (= 650nm) laser pointer, which corresponds to V() = 0.096, is 0.096 x 0.005W x 683lm/W = 0.33lm, whereas the value for a 5mW green (= 532nm) laser pointer is 0.828 x 0.005W x 683lm/W = 2.83lm.

How is input power related to light intensity?

The input power was found to be directly proportional to the square of light intensity. For voltages above 3.5 V, the emission intensity remained constant, independent of the applied voltage. Introduction A light-emitting diode (LED) is a semiconductor that allows current flow in only one direction.

What kind of beam angle does an led illuminant have?

Explanation of LED beam angle LED luminaires and illuminants have both omnidirectional and directional light sources. Omnidirectional spotlights emit their light evenly distributed in all directions. LED spotlights, on the other hand, are directional light sources.

How does the field angle affect the intensity of light?

Even outside the field angle it is not completely dark, small parts of the luminous intensity are still emitted here as scattered light. The beam angle determines how large the generated light circle appears on the illuminated object. An important factor here is also the distance between the light source and the illuminated object.

Which is true of the field angle of a lamp?

The full luminous intensity (100%) is only achieved exactly in the center of the light circle. The field angle defines the outer area in the light circle where the lamp radiates up to one tenth (10%) of its maximum luminous intensity.

What should the beam angle of a GU10 lamp be?

Here not only the beam angle of the illuminant plays a role. The state of the luminaire or the lamp glass where the GU10 lamp is used is also important. A GU10 lamp with a 120° beam angle would probably be screened with a small opening of the lamp glass.
