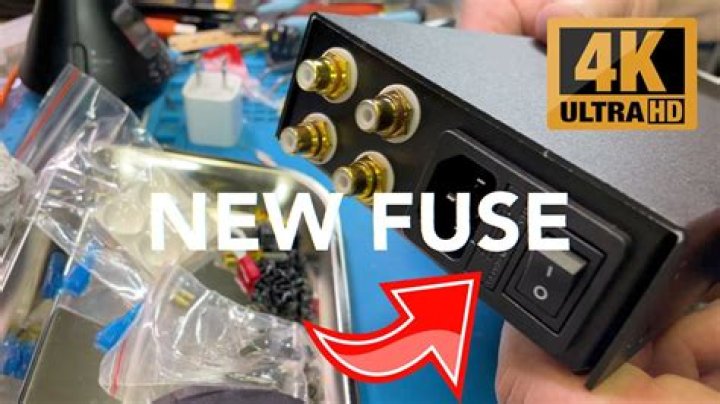

Where is the fuse on a power supply?

The fuse is usually located on one corner of the power supply. Use an ohm meter to check the fuse. If the ohm meter is showing readings below 0.1 ohms, or if there is resistance on the meter, then you will know that the fuse has blown. 6

How do you remove a fuse from a circuit board?

Plug in the soldering iron and heat it to about 700 degrees. Touch the tip of the soldering iron to the tin wires on either side of the fuse. As the solder softens, gently push the fuse away from the circuit board. Once the soldering is complete, you can remove the fuse. Solder New Pins to the New Fuse.

How to test a fuse on your TV power supply?

A ceramic fuse may have a colored stripe down the center of it. A ceramic fuse will always have to be tested with a meter to determine if it is good or bad. Before testing, be sure to unplug your TV if your fuse is still in the board and connected to the panel. Here is the fuse on this board, that we are going to test.

How do you replace a blown fuse on a power supply?

Most of them, however, are soldered directly to the circuit board as shown in Figure B and are not something a novice tech should attempt to replace. The replacement process requires you to remove the circuit board from the housing, unsolder the blown fuse from the circuit board, and then solder the new fuse back in place.

How to contact powerfuse 24×7 fuse service?

To speak with our technically trained staff, please call us at 1.800.739.9145 or 918.665.6888. Emergency 24×7 fuse service is available, along with same-day delivery. We appreciate your business and take significant pride in serving repeat customers.

Do you need fuse protection for a 24V DC power supply?

It is designed to work in the specific environment associated with a 24V DC power supply. The primary of the power supply will continue to require some form of fuse or MCB protection. The secondary should be protected with the Bulletin 1692. Isn’t a fault, a fault, and any circuit protection device will “see” the fault and act to protect?

What kind of Fuse is used on a printed circuit board?

A surface mount fuse is a subminiature fuse that is soldered directly on to a printed circuit board. Surface mount fuses use only one side of the printed circuit board, offering a space saving advantage versus their leaded, through hole mount fuse counterparts.

How does a 24vac power supply box work?

The process is exactly the same for 24VAC power supply boxes, except that the cable polarity does not matter with alternating current (+ and – does not matter with 24VAC wiring). Our latest model power supply boxes use PTC auto reset fuses instead of traditional one time use fuses.

How does an AC fuse work in a DC Circuit?

A fuse installed in an AC circuit performs differently than when installed in a DC circuit. With AC circuits, the current is crossing the zero potential at 60 or 50 cycles a second. This helps in breaking the arc that forms when the fuse element melts and creates a gap.

How is the minimum current of a fuse determined?

The fuse’s minimum current rating is determined by the maximum input current of a DC-DC converter. Typically, the maximum current consumption occurs at the maximum output load and the minimum input voltage. The magnitude of the input current can be determined from: Where: P OUT (MAX) = Maximum dc-dc converter output power.
