What type of battery does an alarm system use?

Sealed Lead Acid battery

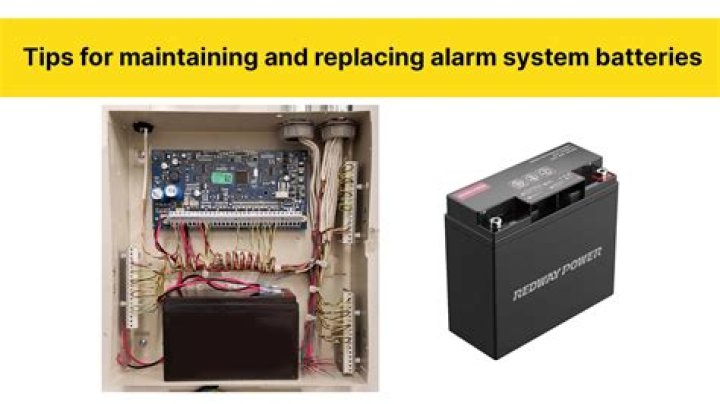

The Alarm Panel requires (1) 12 volt, 4, 5, 7 or 8 Amp Hours Sealed Lead Acid battery. The size of the battery depends upon your specific panel and the types of equipment you have installed on your system. Make sure you purchase the same size battery as the one you are about to replace. 1.

Why is the alarm beeping?

Most alarm systems have a backup battery that kicks in if the power ever goes out. When the battery is low or dead in an old alarm system, the system will start beeping to alert you that it needs to be replaced. If your battery is low, it will either need to be disconnected or replaced.

How do you disconnect a backup battery from an Ademco alarm?

Disconnect one lead from the backup battery in the main panel. The connectors just push on and pull off, no tools needed. Remove AC power from the panel. This can be done by removing one of the transformer wires from terminal 1 or 2 on the circuit board. You’ll need a screwdriver for this method.

Where is the main panel on an Ademco home alarm?

For any other type of Ademco home alarm system, find the main panel box. This is a tan-colored metal box about 18 inches square. Most residential security alarms have the main panel located in a closet, laundry room, or utility room.

Do you need a code for an Ademco Security system?

To operate any home security system, you need a valid security code programmed into it. Alarm system manuals often get lost, along with other paperwork, so you may not know any codes to the system. Fortunately, your Ademco home alarm system is easy to program, and Ademco manuals are readily available.

How do you Exit programming mode on Ademco?

To exit programming mode, press “* 99”. The keypad should return to an idle display, with green “Power” and “Ready” lights. If you ever need to get back into programming mode, enter the (installer code), 8, 00. To add user codes, first follow the steps in your installation manual to add a master user code.
