What kind of wire does a security camera use?
What kind of wire does a security camera use?

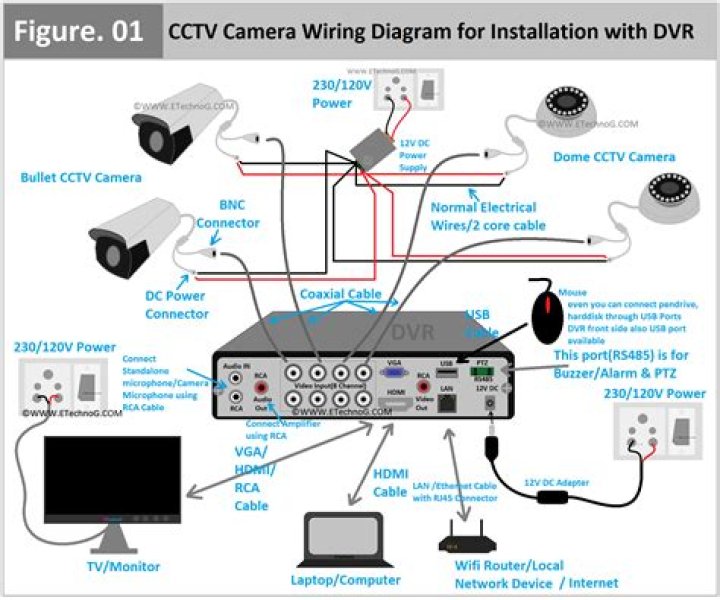

Siamese cables — this kind of security camera wires usually includes 2 types: RG59 and 18/2 wires. RG59 cables are a specific coaxial wire used to connect the cameras to the DVR. 18/2 wires are 2 separate 18-gauge wires used to transmit power from the power supply to the cameras.
What does wiral Lite cable camera system do?
Wiral LITE is a cable camera system that lets you create unique shots regardless of skill. Easy setup and intuitive controls give you more time to get that unforgettable shot. Wiral LITE is a cable camera system that lets you create unique shots regardless of skill.
What kind of wire do I need for my Poe security camera?
If you need to power your PoE security camera outside, you can just fish a CAT5/6 cable, since PoE cabling can provide both data connection and electric power for your PoE security cameras. In terms of wireless security cameras, you just need to run wires for the outlet providing power for wireless security cameras.
How to run ethernet cable to security camera?
If you run a Cat 5/6 Ethernet cable of your security camera, you can just drill a hole to run the Ethernet cable from the camera to your home router or NVR. If the distance between your camera and router/NVR is too far away, you can add a PoE injector. Step 4. The gap/hole should be larger than the maximum amount of wires you expect to ever run.
Siamese cables — this kind of security camera wires usually includes 2 types: RG59 and 18/2 wires. RG59 cables are a specific coaxial wire used to connect the cameras to the DVR. 18/2 wires are 2 separate 18-gauge wires used to transmit power from the power supply to the cameras.
Where does the Red Wire go on a CCTV camera?
“Red” goes from the connector wich goes into the camera to a diffrent red and white wire. Wich go inside of the DC cable. “Black” assumed to be some sort of grounding.
How do you direct wire a trail camera?
First, you must determine the battery pack voltage of your game camera. Second, you must wire a 2.1mm x 5.5mm female plug into the contacts where the battery pack meets the internal contacts of the camera. It is also important to match the external power voltage with the internal trail camera battery pack voltage.
What’s the best way to hardwire a surveillance camera?
Connect the Siamese cable to the pigtail, and then plug the other end into the DVR. Power on the DVR and check the monitor to see that you have an image. Repeat the test with each camera, pigtail and cable set.
