What is the wiring diagram for Honeywell Vista 20p?

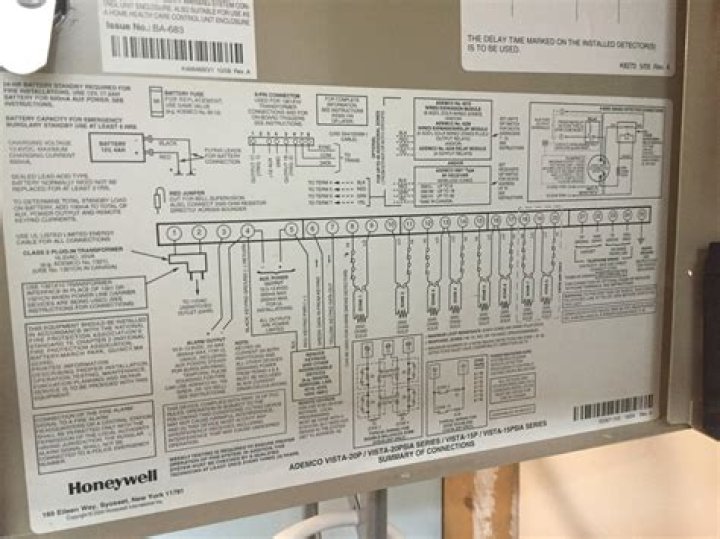

The image of the Honeywell Vista 20p wiring diagram is small, but you can click to enlarge it. Also, I highly recommend that you download a free copy of the complete Ademco manual, which will include a full-size image of the wiring diagram. It also gives detailed specs and ratings for the system and all its terminals.

Is the Ademco Vista 20p a good alarm system?

The Ademco Vista 20P has very good built-in lightning protection, even without an earth ground connection. See why a Vista 20P Ademco Alarm System is such a good choice for the average-size home. More information on Honeywell Security Systems.

Where is the red jumper on the Ademco Vista 20p?

The Ademco Vista 20P has the ability to supervise the bell connection, so you’ll get a trouble beeping at the keypad if the siren wire is cut. To enable this feature, cut the red jumper on the circuit board; it’s located just above the terminal strip on the left end.

What are the keypads for Honeywell vista-20p?

When both partitions 1 and 2 are armed, the common partition will automatically arm as well. The Honeywell VISTA-20P is controlled by wired alarm keypads and you can add up to (8) console keypads such as the Honeywell 6150, Honeywell 6150RF, or Honeywell 6160V.

What does the Vista 20p control panel do?

The VISTA®-20P control panel is a high-capacity, feature-rich smart home security hub that lets you deliver more value to your customers.

How many zones does Honeywell vista-20p alarm control panel support?

The Honeywell VISTA-20P alarm control panel supports up to (48) total zones of protection. There are (8) hardwired zones built into the alarm control panel itself.

Is the Honeywell Vista 20p compatible with the 6160rf?

Without a 6160RF, or a separate standalone wireless receiver, the VISTA-15P, 20P and 21iP would only support wired zones and you wouldn’t be able to program Honeywell wireless 5800 Series devices until you added a receiver.
