What does open circuit on alarm system mean?
What does open circuit on alarm system mean?
The ‘Open CKT’ (aka open circuit) trouble on the display screen of the 6160 keypad specifically means that the keypad is not receiving data from the control panel, therefore it can’t display system status, and displays Open CKT instead.
How do I reset my Vista 20P?
- Access the alarm’s programming mode by entering the installer code, followed by “8,” “0” and “0,” into the control panel.
- Press the “*” button on the control panel, followed by the “9” and “7” buttons to reset the security system to factory settings.

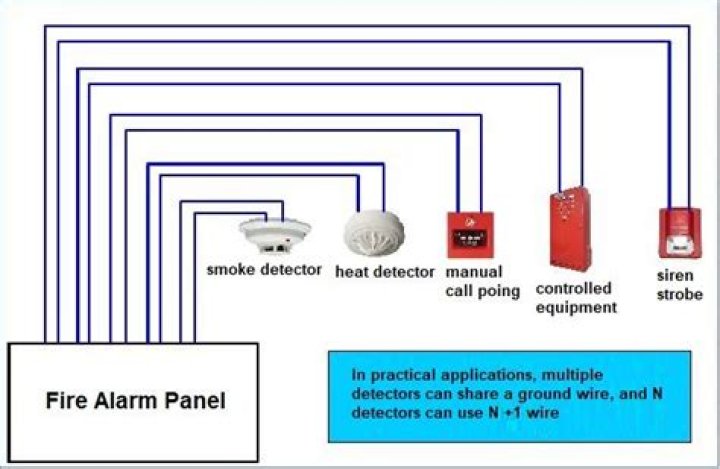

What is NAC circuit?
First off, NAC stands for Notification Appliance Circuit. This is the circuit that powers the horns, strobes, chimes, and speakers in a building. This is the circuit that notifies the occupants of a fire. Usually, there is more than one NAC circuit from the fire alarm panel.
What is short electrical circuit?
A short circuit occurs when electricity strays from its intended path and completes its journey via a shorter route—one of less resistance. This occurs when the flow of electricity is interrupted by a flaw in the established wiring.
How many user numbers do you need for a vista 20p?
Each code will be assigned a different 2-digit user number in order to differentiate it from other codes. Some code types are required to be used with a specific user number. Up to 32 codes can be used with a VISTA 15P system, while a VISTA 20P or 21iP can support up to 48 codes.
What do the Honeywell Vista 20p and 21ip do?
The Honeywell VISTA 15P, 20P and 21iP are hardwired security systems that can each serve as the central hub for a user’s security setup. Since these systems do not come with their own display screen, a user may feel somewhat intimidated when working with one of these panels.
Which is the user manual for vista-20 security system?
VISTA-20 security system User’s Manual VISTA-20 N7527VI 4195ADEMCO -2- TABLE OF CONTENTS
When does the exit delay start on vista-20?
Exit delay begins immediately after entering any arming command, and applies to all modes of arming protection. If programmed, a slow beeping will sound throughout the exit delay period. Entry Delays give you time to disarm the system when you re-enter through the designated entrance door.
Each code will be assigned a different 2-digit user number in order to differentiate it from other codes. Some code types are required to be used with a specific user number. Up to 32 codes can be used with a VISTA 15P system, while a VISTA 20P or 21iP can support up to 48 codes.
The Honeywell VISTA 15P, 20P and 21iP are hardwired security systems that can each serve as the central hub for a user’s security setup. Since these systems do not come with their own display screen, a user may feel somewhat intimidated when working with one of these panels.
How to enter program mode on Ademco Vista?
A TO ENTER PROGRAMMING MODE (using an alpha keypad connected to the control): A.POWER UP, then press [✱] and [#] at the same time, within 50 seconds of powering up (this method must be used if ✱98 was used to exit program mode). OR B. Initially, key: Installer Code (4 + 1 + 1 + 2) plus 8 + 0 + 0. PROGRAMMING MODE COMMANDS
What are the user codes for Honeywell Vista?
One of the first things you will want to do when setting up your VISTA system is to program user codes. These codes are needed for arming and disarming the system and for making changes to the system settings. Each code will be assigned a different 2-digit user number in order to differentiate it from other codes.
