What does Keybus fault mean?
What does Keybus fault mean?
The “loss of clock” trouble indicates that you must set the proper time for the system and the “keybus fault” is probably a trouble related to the removal of your keypads as they “talk” to the system on the “keybus” and if the system is setup to expect a keypad that’s not connected, it can show a trouble.
What is Keybus?

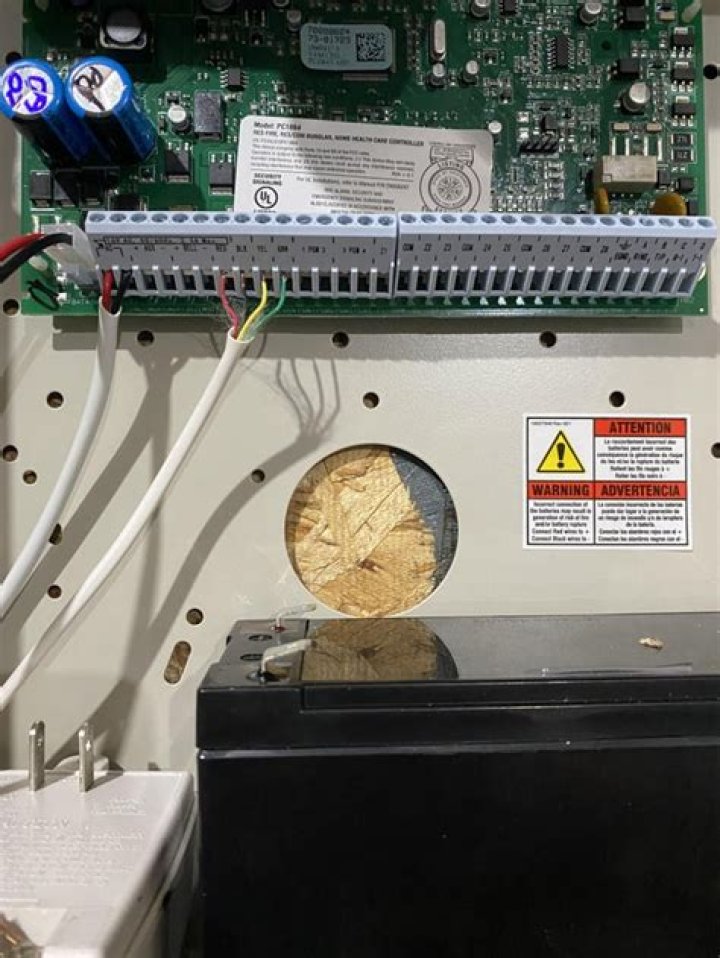

The keybus is a 4-wire connection that is used for keypads and other modules. On the main circuit board it will be labeled using the four standard alarm wire colors: Red, Black, Yellow, and Green. This is how the main alarm circuit board and other connected devices communicate back and forth with each other.
How do you clear the trouble light on a DSC alarm?
DSC Security System Trouble Light When a trouble is present the system trouble indicator light will illuminate and the keypad will beep every 10 seconds. To silence the trouble beep simply press the # key on the keypad. Now press *2 on your security keypad.
What is the keybus on a DSc powerseries panel?
In a lot of literature that talks about the DSC PowerSeries panels, you will see the word ‘keybus’ but you may not really get a good explanation as to what that means or what significance it has. The keybus is a 4-wire connection that is used for keypads and other modules.
What’s the minimum wire gauge for a DSc keybus?
DSC recommends that the minimum wire gauge to use is 22 while the maximum is 18 gauge. They also state that shielded wire should not be used for the keybus. Modules on the keybus can all be on home runs to the panel or connected in a parallel series or T-tapped. Or any combination of those wiring options.
How to solve the common problems in beeping DSC alarms?
Watch Video: Ryan shows how to solve beeping DSC alarm system with a yellow light or triangle. Watch the video here: DSC 1616, 1832, 1864, Impassa, and Alexor Trouble Codes DSC alarms provide top notch protection for you and your family.
What to do if pc5204 keybus fails?
failure Ensure the module is getting proper AC power. Measure across the two AC terminals of the module and ensure the AC input is between 16 and 18VAC. If not, replace the transformer. Remove all devices connected to the AUX+ terminal of the PC5204 and measure the voltage between AUX+ and BLK of the KEYBUS.
Why is my DSC 1616, 1832, or 1864 system keypad beeping?
Why is my DSC 1616, 1832, or 1864 system keypad beeping and what does the yellow triangle mean? If your keypad is beeping or has the yellow triangle illuminated, that means that your system has a trouble condition. To find out exactly what it means, you’ll need to press *2 on a keypad.
In a lot of literature that talks about the DSC PowerSeries panels, you will see the word ‘keybus’ but you may not really get a good explanation as to what that means or what significance it has. The keybus is a 4-wire connection that is used for keypads and other modules.
DSC recommends that the minimum wire gauge to use is 22 while the maximum is 18 gauge. They also state that shielded wire should not be used for the keybus. Modules on the keybus can all be on home runs to the panel or connected in a parallel series or T-tapped. Or any combination of those wiring options.
What are the yellow terminals on a DSc PC?
The Yellow and Green terminals are the data out and data in terminals. This is how the main alarm circuit board and other connected devices communicate back and forth with each other. The keybus is supervised as well. This means that anything connected to the keybus is detected by the main board and then saved.
