What color are stereo wires?

The right-front speaker wires are gray, left-front speakers are white, right-rear speakers are purple, and left-rear speakers are green. Ground wires are black, antenna wires are blue, and amplifier wires are blue with a white stripe.

What color is the wiring harness?

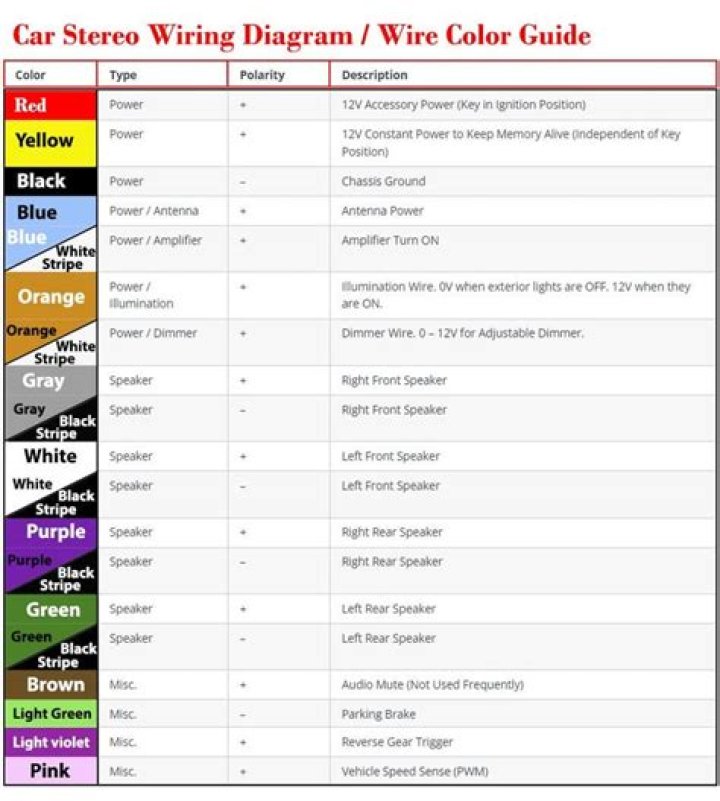

Wiring Harness Color Standards

Wire Color	Wire Function
Yellow	12V Constant / Memory
Red	Switch / Accessory
Black	Ground
Blue	Antenna Remote

What color is the ignition switch wire for radio?

The red wire is the important one, and it is the ignition wire. To make sure you have to test the wires because there are two red wires. One is the ignition wire, and the other is the dimmer wire. The red wire also helps to turn the radio on and off.

Where does the orange wire go on a car stereo?

Locate the orange wire leading from the back of the stereo’s wire harness. On some models, this is also sometimes a reddish-brown color.

What does the orange wire connect to on a car stereo?

The normal use of orange and orange/white wires is orange is for variable voltage to control display illumination dimming (i.e. the head unit display dims along with the other dash lights) while orange/white is a simple on/off signal of whether the dash lights are on (the head unit has only bright and dim display …

What is reverse wire on radio?

When the radio detects the backup light is on by voltage, the radio switches into reverse camera input mode automatically. Some of the reverse cameras’ video cable attached ( Refer to under picture ) with a trigger wire to extend the Reverse camera detecting lead to the positive terminal of backup light.

What is the orange wire for on a car stereo?

illumination dimming
The normal use of orange and orange/white wires is orange is for variable voltage to control display illumination dimming (i.e. the head unit display dims along with the other dash lights) while orange/white is a simple on/off signal of whether the dash lights are on (the head unit has only bright and dim display …
