Ball Bearing Preload Disc Springs The Ball Bearing Disc Springs are available in two different styles:plain and slotted. Ball-bearing Pre-load Disc Springs are especially designed for use with radial ball bearings and maintain positioning accuracy of the bearing with no end play. These Springs minimise vibration and shaft deflection.
What are the different types of disc springs?
The Ball Bearing Disc Springs are available in two different styles:plain and slotted. Ball-bearing Pre-load Disc Springs are especially designed for use with radial ball bearings and maintain positioning accuracy of the bearing with no end play. These Springs minimise vibration and shaft deflection.
How many ball bearings are in a sy8001 disc?

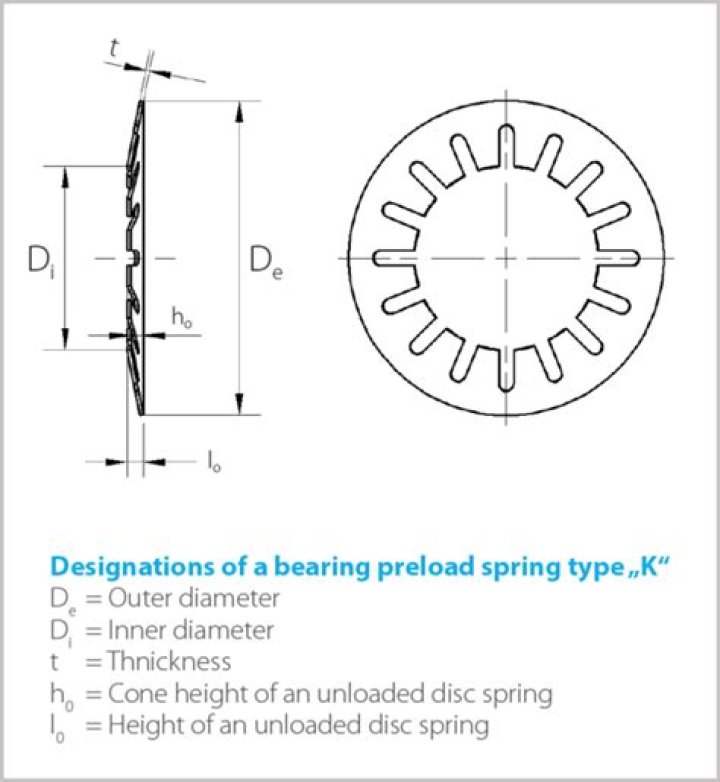

disc spring/K/ball bearings(slotted) Item no. D/mm d/mm t/mm ball bearing model SY8001 9.8 6.2 0.15 623（EL3） SY8002 12.8 7.2 0.2 624（EL4） SY8003 15.8 8.2 0.25 625（EL5）634（R4）
What are the different types of disc bearings?
disc spring/K/ball bearings(plain) Item no. D/mm d/mm t/mm ball bearing model SY701 9.8 6.2 0.2 623（EL3） SY702 12.8 7.2 0.25 624（EL4） SY703 15.8 8.2 0.25 625（EL5）634（R4）
How big are disc springs for ball bearings?
Slotted Ball Bearing Disc Springs: Disc springs with low force and large deflection characteristic are increasingly required for use with small size ball bearings.Outside diameters OD ranging from 9.8 – 94.5mm disc spring/K/ball bearings(plain)
What kind of springs are used for disc springs?
Plain Ball Bearing Disc Springs: Disc springs with high force, low deflection and pronounced regressive spring characteristics are for backlash compensation, silencing and protection of ball bearings.
Why do you need pre load disc springs?
Ball-bearing Pre-load Disc Springs are especially designed for use with radial ball bearings and maintain positioning accuracy of the bearing with no end play. These Springs minimise vibration and shaft deflection. Proper pre-loading will increase bearing rigidity and help eliminate excessive running noise. Plain Ball Bearing Disc Springs:
