Is the Honeywell 6160 keypad compatible with Vista?

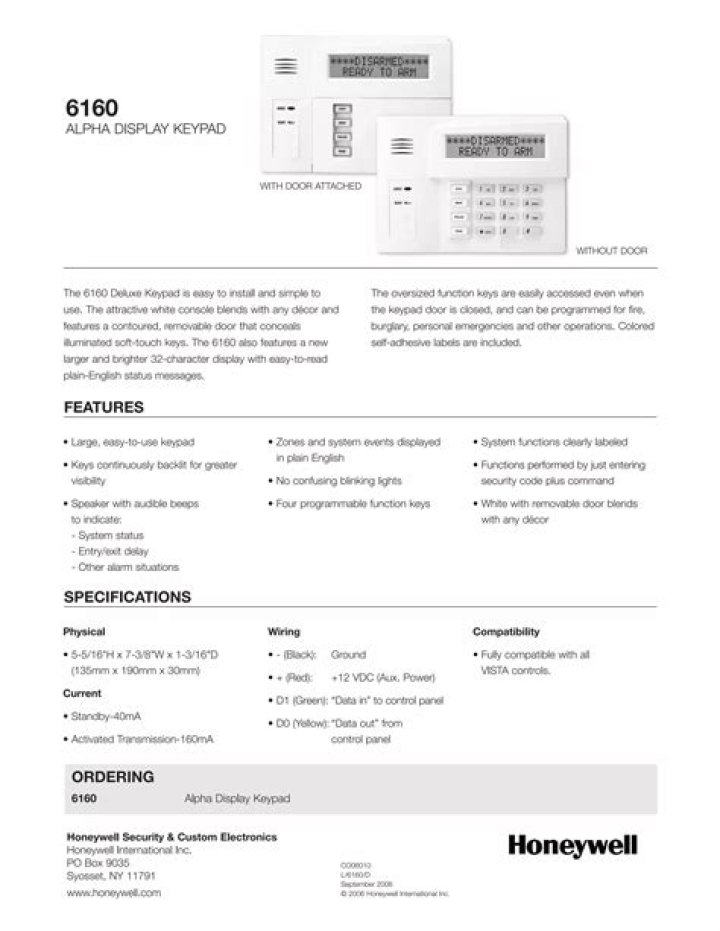

The 6160 keypad has a 32 character display screen which features English status messages. Both the screen and the keys are backlit. The 6160 also has a speaker which will beep to indicate system status, entry/exit delay, or alarm situations.The Honeywell 6160 keypad is compatible with the Honeywell Vista series control panels.

Where are the zones on the Ademco Vista 20p?

The Ademco Vista 20P has the capacity for 8 on-board zones using basic connections. Each zone uses a 2,000-ohm (2K ohm) end-of-line resistor, which can be located at the alarm contact or inside the panel. Zone doubling is an optional connection scheme that this panel supports; it adds 7 more hardwired zones to panel with no additional hardware.

What kind of resistors does the Ademco Vista 20p use?

Burglary zones use “normally closed” loops, so always connect the EOLR in series with the loop. Note that the Ademco Vista 20P, like many other panels, can be programmed to not use end-of-line resistors on burglary zones. This option simplifies wiring, and cleans up the panel a bit.

What is the wiring diagram for Honeywell Vista 20p?

The image of the Honeywell Vista 20p wiring diagram is small, but you can click to enlarge it. Also, I highly recommend that you download a free copy of the complete Ademco manual, which will include a full-size image of the wiring diagram. It also gives detailed specs and ratings for the system and all its terminals.

The 6160 keypad has a 32 character display screen which features English status messages. Both the screen and the keys are backlit. The 6160 also has a speaker which will beep to indicate system status, entry/exit delay, or alarm situations.The Honeywell 6160 keypad is compatible with the Honeywell Vista series control panels.

What do you need to know about Honeywell 6160?

The Honeywell 6160 is an alphanumeric keypad and provides full functionality for programming and controlling a Honeywell Vista series hard-wired security system. The 6160 keypad has a 32 character display screen which features English status messages.

Where do two wire smokes go on Honeywell Vista?

So the first thing I’m going to wire into this system will be a two-wire smoke. And two-wire smokes always go on zone one on a Honeywell VISTA panel. If you have more than one two-wire smoke, you’re just going to run all these together on zone one. They cannot be zoned out individually.

Where are the terminals on Honeywell Vista panel?

On a Honeywell VISTA panel, there is no polarity, so you can wire the black and red to whatever those two terminals you want. Terminals one and two on the far left side. So we’re just gonna stick these wires in here underneath the screw terminals, trying to get them in there. All right.

The Honeywell 6160 is an alphanumeric keypad and provides full functionality for programming and controlling a Honeywell Vista series hard-wired security system. The 6160 keypad has a 32 character display screen which features English status messages.

So the first thing I’m going to wire into this system will be a two-wire smoke. And two-wire smokes always go on zone one on a Honeywell VISTA panel. If you have more than one two-wire smoke, you’re just going to run all these together on zone one. They cannot be zoned out individually.

On a Honeywell VISTA panel, there is no polarity, so you can wire the black and red to whatever those two terminals you want. Terminals one and two on the far left side. So we’re just gonna stick these wires in here underneath the screw terminals, trying to get them in there. All right.
