How many facility codes are in hid 26 bit format?

226 HID Corporation. All rights reserved. The HID ordering code number for the Standard 26-bit format is H10301. H10301 has 255 possible facility codes from one to 255. There can be up to 65,535 card ID numbers, from one to 65,535, per facility code. The total number of cards that can use the entire range without duplication is 16,711,425.

What is the facility code for Honeywell ptprox25?

The Ademco (now Honeywell) PTPROX25 is a package of 25 x HID 1326 ProxCard II clamshell non-printable proximity access cards encoded with the 34 bit A14001 proprietary format. Facility code and card numbers are not selectable, they are managed by the manufacturer, and all cards leaving the factory are unique, no duplicates are guaranteed.

Can a 125 kHz prox card be read at 13.56 MHz?

All specific card formats are identical in both 125 kHz Prox and 13.56 MHz iCLASS® cards. This ensures that any controller capable of understanding data from 125 kHz cards and readers will also seamlessly work with 13.56 MHz cards and readers.

How does a proximity card format the data?

A proximity card stores data. A “format” is the structure of the binary data stored in the card. The number of ones and zeros, and how they are put together, determines the format and ultimately the credential number. When a card is waved in front of a reader, those numbers are sent to the access controller.

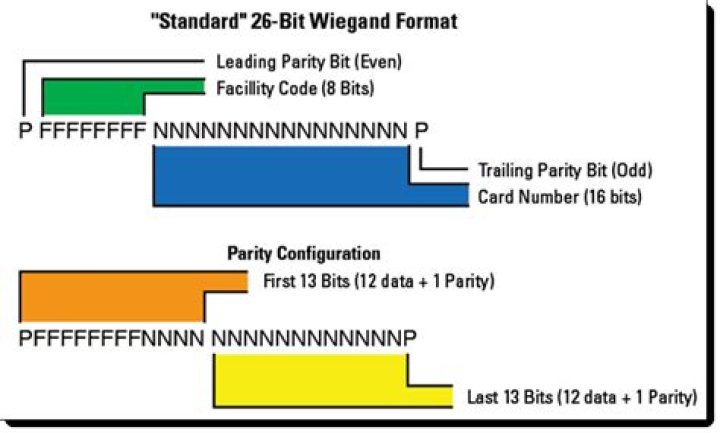

What is the facility code on a 26 bit format card?

This number can go from 0 to 255 on a 26 bit format card. To grant access, an access control system validates the facility code AND the serial number. Company A will reject Company B cards, and viceversa, even if they have the same card serial number, because the facility code does not match.

Which is the 26 bit identisource card format?

Card manufacturers such as HID, Indala and AWID sell cards with this format to any dealer. This 26 bit format is recognized by all access hardware. Over the years, formats with a higher number of bits (33, 37, 48, 50) have been added to increase card security.

What’s the difference between hid 26 and 37 bit cards?

One exception is the HID 37 bit proprietary format, priced similarly to a 26 bit card. Every card has a consecutive serial number encoded, assigned in your access control database to a cardholder.
