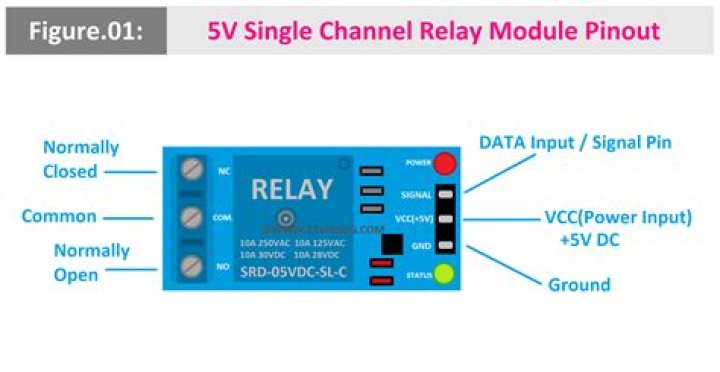

How is the 5V relay connected to the outlet?
How is the 5V relay connected to the outlet?
PLEASE PROCEED WITH CAUTION, AND ALWAYS MAKE SURE CIRCUITS ARE UN-PLUGGED BEFORE WORKING ON THEM. We will install the 5V relay in-line with the positive (hot) wire of the 120-240V power outlet in the normally open configuration. The negative (neutral) wire and the ground wire will be connected directly from the power cord to the outlet.
How is the operating time of a relay determined?
This type of relay have an operating time depending on the value of the current, generally with an inverse characteristic, the operation time of the relay is smaller as the current gets larger. These relays also have two settings: the pick-up current and the curve level. In early electromechanical relays the curve is set by means of a dial.
How are relays designed to respond to change in current?
Distance relays are designed to respond change in current, voltage, and the phase angle between the measured current and voltage. The operation principle relies on the proportionality between the distance to the fault and the impedance seen by the relay. This is done by comparing a relay’s apparent impedance to its pre-defined threshold value.
When do power relays need to be activated?
Relays are not required to operate during normal operation, but must immediately activate to handle intolerable system conditions. This immediate availability criterion is necessary to avoid serious outages and damages to parts of or the entire power network.
What is the purpose of a power relay?
It is an electrical device designed to initiate the isolation of a part of the electrical installation, or to operate an alarm signal, in the event of abnormal condition or a fault.
How is a protective relay tested and maintained?
1. Visual and Mechanical Inspection Testing and maintenance of protective relays always begins with a thorough visual and mechanical inspection. If the circuit to be tested is in service, one relay at a time should be removed (if applicable) so as not to totally disable the protection.
What should my as-left relay settings be?
As-left relay settings should match the most recent coordination and arc-flash study or engineered setting files. Verify that all settings are in accordance with the most recent protective device coordination study or setting sheet supplied by the equipment owner.
What should I do if my relay is not working?
Set the relay clock if it’s not controlled externally. Connect backup battery. Check with setting engineer or owner for applicable firmware updates and product recalls. Inspect, clean, and verify operation of shorting devices. Verify the operation of any light-emitting diodes, displays, and targets.
