How do you wire a Honeywell 6160 keypad?
How do you wire a Honeywell 6160 keypad?
Wire directly from the keypad terminal block to the terminal block on the control panel. Run the green wire from the keypad terminal G to the control panel “data in” terminal. Run the black wire from the (-) terminal on the keypad to the Aux Pwr (GND) terminal on the control panel.
How do you replace a Honeywell 6150 keypad?
Using a flathead screwdriver, push in the two case release snaps found at the bottom of the keypad then pull the bake case away. Insert the screwdriver in the side of the keypad between the front and back case and gently twist to release the side locking tab. Repeat for the other side.
How do I partition a vista-20P?
This is called the GO TO partition command. Simply enter the master code (default is 1234) followed by star (*) then the partition number. For example, 1234 + (*) + 2. This would jump a partition 1 keypad to partition 2.
How to program the Honeywell Honeywell 6160rf?
PROGRAMMING THE 6160RF Refer to the following procedure to program the 6160RF: STEP DESCRIPTION DISPLAY CHOICES 1. Enter the program mode by pressing the [1] and [3] keys simultaneously for a few seconds within 60 seconds after applying power. 2. (Keypad Address) Enter the two-digit keypad address.
How to program the Ademco 6160rf keypad?
PROGRAMMING THE 6160RF Refer to the following procedure to program the 6160RF: STEP DESCRIPTION DISPLAY CHOICES 1. Enter the program mode by pressing the [1] and [3] keys simultaneously for a few seconds within 60 seconds after applying power. 2. (Keypad Address) Enter the two-digit keypad address. Press the [ ] key to continue.
Can a 6160rf be mounted to a wall?
The 6160RF can be surface mounted directly to walls, or to a single- or double-gang electrical box. Follow these steps to mount and wire the keypad: 1. Push the two case release snaps at the bottom of the keypad with the blade of a medium screwdriver (this will push in the release snap), then pull that side of the case back away.
How do I program a Honeywell 6160 keypad?
How Do I Program A Honeywell 6160 Keypad? Install a Honeywell 6160 keypad to the control panel’s keypad terminals as shown in the installation manual. Once installed, to enable the 6160 keypad, start by setting the address at the keypad. The main keypad address should be addressed to 16.
What do you need to know about Honeywell 6160?

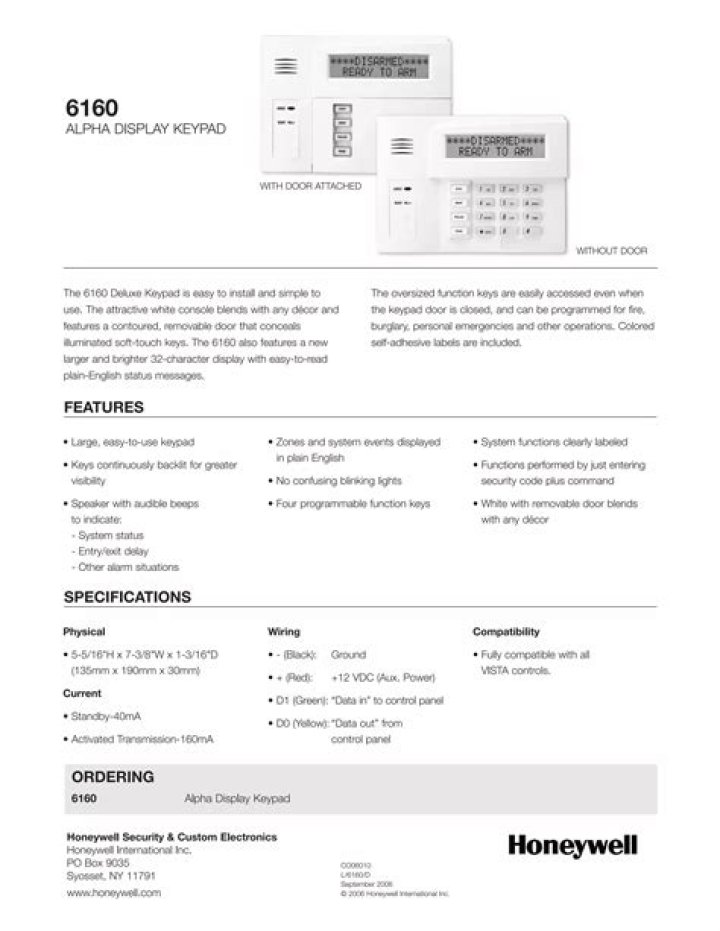

The Honeywell 6160 is an alphanumeric keypad and provides full functionality for programming and controlling a Honeywell Vista series hard-wired security system. The 6160 keypad has a 32 character display screen which features English status messages.
How do I release my Ademco 6160rf case?
Push the two case release snaps at the bottom of the keypad with the blade of a medium screwdriver (this will push in the release snap), then pull that side of the case back away. Insert the screwdriver in the side of the keypad (between the front and back case) and gently twist to release the side locking tab. Repeat for the other side.
The 6160RF can be surface mounted directly to walls, or to a single- or double-gang electrical box. Follow these steps to mount and wire the keypad: 1. Push the two case release snaps at the bottom of the keypad with the blade of a medium screwdriver (this will push in the release snap), then pull that side of the case back away.
