How do you tell which speaker wire is left and right?

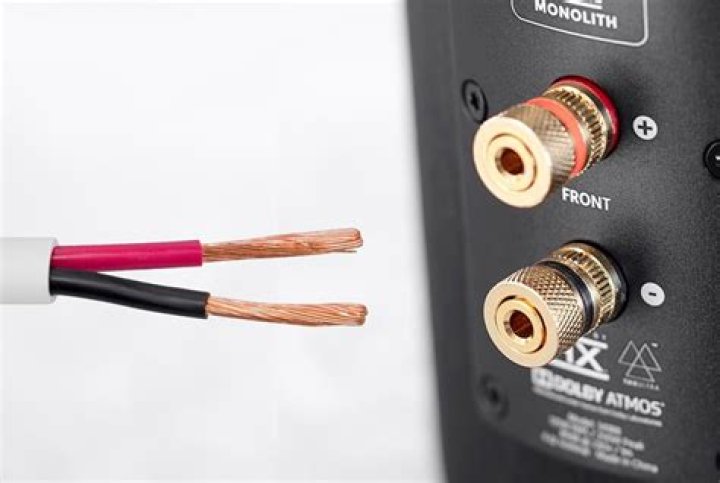

If correctly connected, the copper-colored wire (compared to the silver-colored wire) or the wire with the white stripe (compared to the wire with no stripe) should be your positive wire. If your amp or speaker has color-coded connections, the positive should connect to the red connection.

What gauge wire do I need for speakers?

Thick wire (12 or 14 gauge) is recommended for long wire runs, high power applications, and low-impedance speakers (4 or 6 ohms). For relatively short runs (less than 50 feet) to 8 ohm speakers, 16 gauge wire will usually do just fine. It’s cost-effective and easy to work with.

What happens if you wire a speaker the wrong way?

Reversing speaker wire polarity is a common audio error. This action is known as making the speaker “out of phase,” and results in audio oddities. Although this is not dangerous to a speaker or amplifier, proper power delivery and speaker response is not possible with reversed speaker wires.

Which prong on a speaker is positive?

Generally speaking, the positive terminal is usually on the left when the speaker is facing up.

What kind of wire should I use for a speaker?

Gauges available usually range from about 20 or 22 gauge to 10 gauge, with 18 gauge being the most popular. Solid wire (left) is a terrible choice for speakers & audio systems. It’s very hard to bend & curve, it can break when exposed to constant vibration, and it’s also harder to make connections with.

How big is a 5ft speaker wire?

So, relative to an 8 ohm speaker, 0.253 ohms (100ft) represents 3.16% signal loss. Generally 5% is still considered acceptable loss. A 5ft cable would be 0.0127 ohms and a 20ft cable would be 0.0506 ohms. 5ft assuming an 8 ohm speaker represents 0.159% loss and 20ft (assuming an 8 ohm speaker) represents a 0.633% loss.

How big is a 16 gauge speaker wire?

16 gauge speaker wire is run from the control to left and right 8″ ceiling speakers. All of the speakers are the same and are rated at 80 watts nominal, 160 watts maximum at 8 ohms. The sound is just “ok” as background sound, but clearly has no “omph”.

How is the size of a speaker wire determined?

Most speaker wire follows the American Wire Gauge (AWG) standard that uses a chart of different gauges. It assigns a number to each standard size & electrical conductor rating. Likewise, each size is rated for a certain amount of electrical current capacity.

What kind of speaker wire should I use?

Longer than 40 feet use 12 gauge just for added safety, not because it is necessary (14 gauge speaker wire would still work fine but why put yourself in the position to upgrade if you get a more powerful amplifier?). If your cable run is between 0 and 6 feet and you are pushing less than 200 watts use 16 gauge cable.

Why do you need a low resistance wire for a speaker?

Resistance is by far the most important property to look at. Low-resistance wire allows more of the source’s power through to the speaker coil, meaning more power and more sound. Simple enough. How does resistance affect performance?

How big is a 10 gauge speaker wire?

As an example 10 gauge cable would present a loss of 19.68 watts as a comparison. For up to 20 ft of cable length a 10 gauge cable can handle 2000 watts while a 12 gauge speaker wire size can handle 1960 watts with over a 150 watts lost between the amp and speaker.

Most speaker wire follows the American Wire Gauge (AWG) standard that uses a chart of different gauges. It assigns a number to each standard size & electrical conductor rating. Likewise, each size is rated for a certain amount of electrical current capacity.
