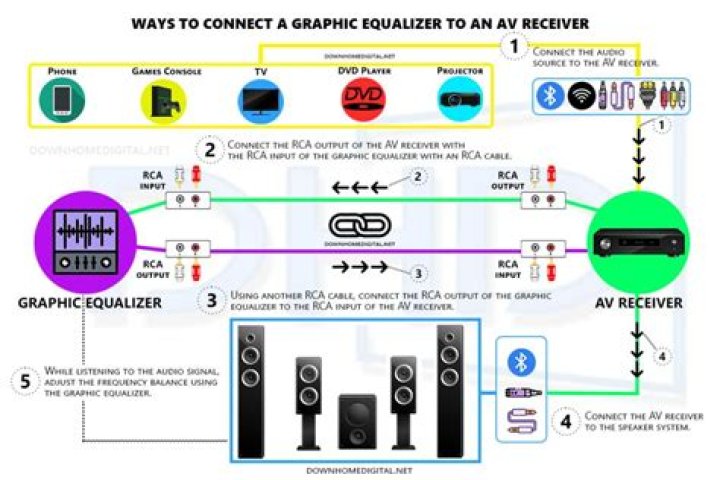

How do you hook up a graphic equalizer?

Plug a pair of RCA audio cables into the input sockets on the rear of the graphic equalizer. Connect the other end to the “Tape Monitor” outputs on the rear of the receiver. Connect a second pair of audio cables to the “Tape Monitor” inputs on the rear panel of the receiver.

How do you hook up an equalizer crossover?

Plug the preamp or mixer main output into the equalizer input with a shielded interconnect cable. Connect the equalizer output to the crossover input with a shielded interconnect cable. Plug shielded interconnect cables into each of the crossover’s labeled frequency outputs.

What is the best graphic equalizer setting?

The “Perfect” EQ Settings: Unmasking the EQ

• 32 Hz: This is the lowest frequency selection on the EQ.
• 64 Hz: This second bass frequency starts to become audible on decent speakers or subwoofers.
• 125 Hz: Many small speakers, such as in your laptop, can just about handle this frequency for bass information.

How do you adjust a graphic equalizer?

First, position speakers for best sound. Next, set equalizer controls to neutral or 0 before adjusting to your listening preference. For brighter treble, reduce mid-range and low-end frequencies. For more bass, tone down treble and mid-range frequencies.

What is the purpose of a graphic equalizer?

Why use a graphic equalizer? A recording of music or spoken word can pick up a variety of tones, not all of them pleasant. A graphic equalizer (EQ) offers a simple solution: boost or cut (make louder or softer) a specific range of frequencies to improve sound quality.

How does the graphic equalizer work?

How does it work? A technology behind graphic equalizer works like a series of filters. The input signal passes through each filter of a particular frequency, and when one changes the slider positions, it boosts or cuts the frequency components of the signal.

What goes first EQ or crossover?

EQs and other devices should always be in Line before the actual Crossover. Most DSP Units offer Input EQ which is essiantially that.

Which is better equalizer or crossover?

since these are both tools, and because of the issues they address, neither is “better”. both are helpful. a crossover will allow you to highpass the speakers, which prevents them from playing bass (leave that to the subwoofer). an eq is a general tool and can be useful.

What is the equalizer for?

An equalizer (also called an “EQ”) is an audio filter that isolates certain frequencies and either boosts them, lowers them, or leaves them unchanged. Equalizers are found on a wide array of electronic devices.

Should I use a graphic equalizer?

Graphic EQs are popular for live sound installations, in which you want to use EQ as an overall shaping tool for the sound, for stage monitor tuning, and other applications. However, if you want to make more “surgical” corrections, such as when recording, a parametric EQ gives you more control.

What’s the best way to hook up an equalizer?

Most receivers have either preamp-in and preamp-out connections or tape monitor connections. In most cases, these are the best way to connect an equalizer to your stereo. However, if your receiver does not have these channels then some amplifiers allow you to connect the equalizer directly.

How to set the EQ on a graphic equalizer?

Steps Set all the EQ bands on 0, or in the middle. Listen to your audio through the speaker to determine if it needs anything. Remember that the left side of the unit, usually starting around 20, is the low or bass side; the right, usually ending at around 16k, is the high or treble side. Adjust the equalizer accordingly once you have that down.

Is there an equalizer for Bang and Olufsen?

Please offer solutions to have the equalizer on my Bang & Olufsen audio. 10-06-2017 03:16 PM Thank you for visiting the HP Forums! A great place where you can find solutions for your issues with help from the community!

How do I Turn on the tape monitor on my equalizer?

To switch on the “Tape Monitor” setting you should depress the button on the front panel of the equalizer. If you have a tape deck connected to the tape monitor channels then you will have to remove this before connecting your equalizer.

How to hook up a graphic equalizer to a receiver without?

Make sure to pick up a brand that can handle the power your receiver outputs. Hope this helps someone in need… Done assuming you have an external power amp (the EQ also has a power amp) since I’d guess a receiver without preamp outputs does not have preamp inputs to take the output from the graphic equalizer and send it to the power amps…

How do you hook up an equalizer to a dash?

Connect the RCA cables to your in-dash receiver. Plug the two RCA cables into the receiver’s preamp outputs. Tape them together so they will not come apart. Bring the cables to the equalizer and plug in. Route the cables through the dash to the equalizer. You should use tape or wire ties along the way to connect the two cables together.

Where do I plug in my equalizer cable?

Connect one pair of cables to the pre-amp output channels on the receiver and the other end of the cable to the left and right channel inputs on the equalizer. You will usually find these channels on the rear of the equalizer. Right channel jacks will usually take the red colored RCA plug while left channel should take white or black RCA plugs.

How do I get the EQ effect on my equalizer?

When you want to get the eq effect, you press the tape button on your amplifier and select the source you wish to hear on your amplifier (input select). Make sure the tape monitor button is off on your equaliser to hear what is selected with the input select knob.
