How do you add ohms to speakers?

To do so:

1. Connect a resistor with the right resistance (Ohms) value to bring up the speaker impedance as needed, and with at least 1/2 the rated power of the stereo or amp’s power output rating.
2. Insulate any exposed resistor leads so they can’t short to speaker wire or metal.

Whats does adding ohms to your speaker means?

All speakers have an impedance rating in ohms, which represents how difficult the speaker is to power. The lower the impedance, the more efficiently it allows the electric signal, which is basically the music, to pass through the speaker.

What ohm are TV speakers?

Ohms is a rating that refers to the restriction of power, or impedance. The higher the ohm rating, the more impedance is applied to the flow of power. Most home receivers and speakers are rated 4, 6 or 8 ohms.

How do I get my speakers to work on my TV?

How to connect external speakers to your TV

1. Using RCA cables.
2. Using 3.5mm analogue cables.
3. Using an HDMI (ARC) cable to connect the TV to an receiver or soundbar.
4. Using an HDMI cable via your receiver or soundbar through to the TV.
5. Using an optical cable.

Can you change speaker ohms?

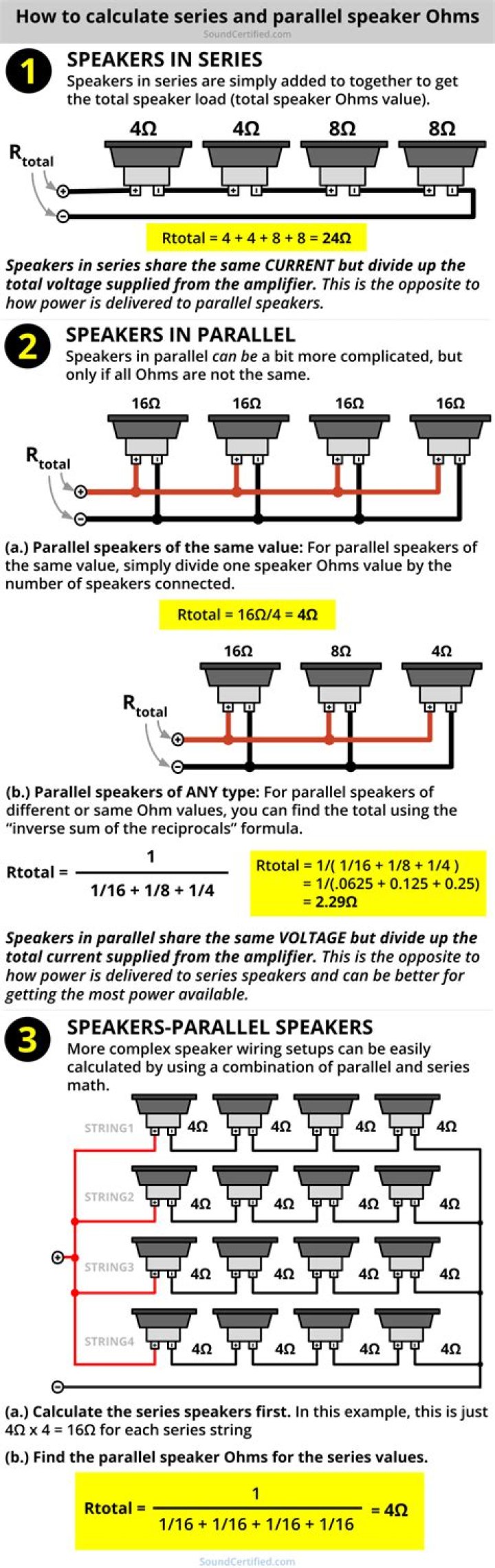

A common method of changing speaker impedance is by adding another speaker, either in series or in parallel with the existing speaker. While this will change the output power of the amp, the speakers will share that power. For more details see How Multiple Speakers Share Power.

What if speaker impedance is too low?

Too low an impedance will result in weak output and poor tone. If the speaker impedance is higher than that of the amplifier, its power output will again be less than it is capable of.

Does higher ohms mean better sound?

So yes, higher the ohms better the sound experience; that is dependent on if you’re using the appropriate amp to provide the required power, 100 ohms headphones plugged into a laptop will not get you the experience you expected, as most laptops support an impedance of only up to 32 ohms.

How do I connect Logitech speakers to my TV?

How to Hook a Logitech Z313 to a TV

1. Put the pin attached to the two satellite speakers into the speaker port on the subwoofer.
2. Place the power cable into an open electrical outlet.
3. Connect the red and white inputs on the “RCA audio to 3.5mm female” cable to the red and white audio inputs on your TV.

Can you use 6 ohm speakers with 8 ohms speakers?

The opposite scenario – 4 or 6 ohm speakers on a 8 ohm amp is not recommended at all. The onkyo should do fine with those klipsch floorstanders. You can use 8ohm speakers on a 6ohm receiver. the receiver just wont put out 135w per channel, it will slightly less.

Is there a headroom limit for 4 ohm speakers?

A 200w/ch amp to 8 ohms represents 40 volts. However, if you run a 100w/ch amp at 8 ohms down at 4 ohms, the speakers consume 200w/ch BUT, and this is a big BUT, that amp still only has a 28.3 volt limit. This range of voltage swing on the output of the amp is called Headroom.

How does a 4 ohm speaker increase power?

That seeming increase in power with 4 ohm speakers is something of an illusion. In reality, amps are voltage devices, the take a low input voltage and amplify it up, and the output feed the higher voltage to the speaker, an as a result of voltage being applied to resistance current flows and power is consumed.

Can a AV receiver handle 4 ohm speakers?

Click to expand… The answer is always, “It depends”. But I would say that for most cases, the Yamaha A2080 and Denon X4500 will be able to do just fine in 9.1 with 4-ohm speakers. The salient fact is that in real life, your AVR will usually never be forced to handle ALL CHANNELS DRIVEN.

Can you get the same volume from a 4 ohm speaker?

The second one is that you can’t get the same maximum volume from your amp or radio as you could using only the correctly matched speaker impedance. For example, let’s say you want to use a 4 ohm speaker with an 8 ohm minimum 100W/channel home receiver.

Can a series resistor be added to a speaker?

Adding a 4 ohm resistor in series will bring the total resistance (speaker load, in Ohms) up to the safe level of 8Ω. However, having a series resistor connected to the speaker means that each one gets only 1/2 of the total power delivered.

How many ohms does a surround sound amplifier need?

My amplifier is rated at 8ohms for my surround sound but my speakers are 6 ohms. The owners manual says that if the speaker resistance is too low the power protector will blow and that is exactly what happens when I raise the volume on my amp. I want to increase the resistance on my 5 surround sound speakers and my subwoofer by 2 ohms from 6 to 8.

What do I need to connect my speakers to my TV?

As shown in the diagram, you’ll need to connect the amplifier to the TV’s audio outputs using RCA cable or in some cases, and 3.5mm adapter also. Most mini amps come with an AC-DC wall power supply you’ll plug in. Next, you’ll connect the amp to the speaker terminals using speaker wire and you’re ready.
