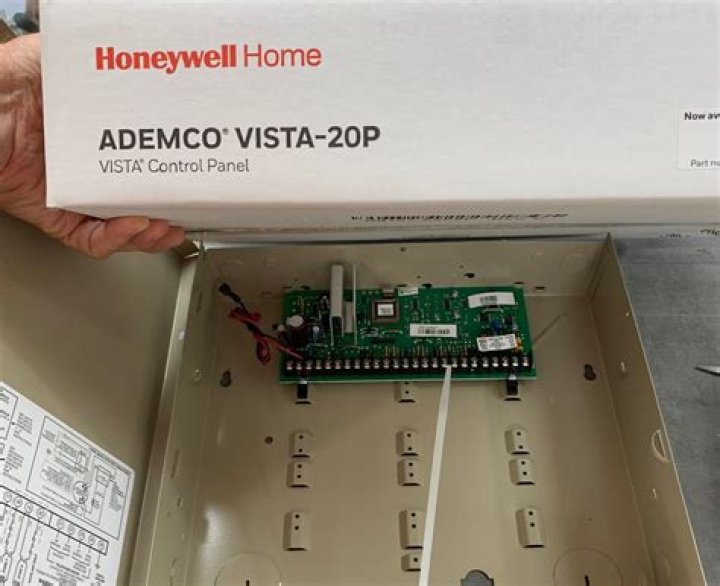

How do I set up wireless on VISTA-20P?

Complete the following steps to program a wireless zone on a Honeywell VISTA-20P:

1. Access system programming. Enter the installer code (the default code is 4112) + 800 on a keypad.
2. Access zone programming. Enter * 56.
3. Select a zone.
4. Program the zone.
5. Exit programming.
6. Test the sensor.

How do I delete a zone in Vista 20p?

To delete a zone, change the zone type to 00, then press *. When prompted to “Delete Zone?” press 1 for yes. When finished removing or re-programming zones, press 00 at the “Enter Zone Number” prompt.

How to disarm a Honeywell Ademco VistA system?

To arm your system, enter your security code followed by the desired arming key. To disarm the system, enter your security code then press the OFF key. When an alarm occurs, the keypad sounds and displays the zone (s) causing the alarm.

What is the wiring diagram for Honeywell Vista 20p?

The image of the Honeywell Vista 20p wiring diagram is small, but you can click to enlarge it. Also, I highly recommend that you download a free copy of the complete Ademco manual, which will include a full-size image of the wiring diagram. It also gives detailed specs and ratings for the system and all its terminals.

What kind of resistors does the Ademco Vista 20p use?

Burglary zones use “normally closed” loops, so always connect the EOLR in series with the loop. Note that the Ademco Vista 20P, like many other panels, can be programmed to not use end-of-line resistors on burglary zones. This option simplifies wiring, and cleans up the panel a bit.

Where are the zones on the Ademco Vista 20p?

The Ademco Vista 20P has the capacity for 8 on-board zones using basic connections. Each zone uses a 2,000-ohm (2K ohm) end-of-line resistor, which can be located at the alarm contact or inside the panel. Zone doubling is an optional connection scheme that this panel supports; it adds 7 more hardwired zones to panel with no additional hardware.

Is the Ademco Vista 20p a good alarm system?

The Ademco Vista 20P has very good built-in lightning protection, even without an earth ground connection. See why a Vista 20P Ademco Alarm System is such a good choice for the average-size home. More information on Honeywell Security Systems.

Is the Honeywell Vista 20p a step up from the 15p?

The Ademco Honeywell Vista 20P is a step up from the 15P model and can handle more zones, more user codes, features 2 partition areas and has a larger event memory among numerous other upgrades. If playback doesn’t begin shortly, try restarting your device.

Is the Honeywell Vista SEM compatible with Alarm.com?

And the latest addition to the option for the Honeywell Vista series is the System Enhancement Module (SEM) from Alarm.com. Alarm.com is one of the most popular and feature rich smart home security platforms. The SEM allows Alarm.com to be backwards compatible with the Vista 20P with only a one major feature unavailable: image sensors.

Where is the red jumper on the Ademco Vista 20p?

The Ademco Vista 20P has the ability to supervise the bell connection, so you’ll get a trouble beeping at the keypad if the siren wire is cut. To enable this feature, cut the red jumper on the circuit board; it’s located just above the terminal strip on the left end.
