How do I set up my NAD phono preamp?

1 Connect the dedicated Plug-in Power Supply to the NAD PP 2e (marked 23.5V). 2 Insert the Plug-in Power Supply to a live mains socket; the blue LED on the NAD PP 2e’s front panel will light up. Installation is now complete.

What is preamp used for?

The purpose of a preamp is to amplify low level signals to line level, i.e. the “standard” operating level of your recording gear. Microphone signals are usually way below the nominal operating level, so a lot of gain is required, usually around 30-60 dB, sometimes even more.

How to connect a NAD pp 2E to an amplifier?

B CONNECT PP 2e TO AN AMPLIFIER OR RECEIVER 1 Connect suitable RCA leads from the NAD PP 2e to the amplifier or receiver. Always use a so-called “Line-Level” input such as CD, AUX or DISC. Never connect the lead from the NAD PP 2e to an input marked PHONO or turntable.

How much is the NAD pp 4 phono stage?

This is a review and detailed measurements of the NAD PP 4 Digital USB Pre-amplifier and phono stage. It was kindly sent to me by a member for testing and costs US $199 on Amazon including Prime shipping (retail price $229). The variable gain is nice to get the levels to be close to but not exceeding digital clipping.

Where is the MC on a NAD PP3?

Connect the leads from the turntable to the appropriate input sockets on the back of the NAD PP 3; MC for moving coil, MM for moving magnet cartridge. Make sure you connect the Right channel to the Right input; the Left channel to the Left input. Normally, Red connector denotes the Right Channel; White denotes the Left channel.

Where to find a phono preamp on a turntable?

The three most common places to find a phono preamp in most systems are: This receiver has a built-in phono preamp with a dedicated “PHONO” input to plug in a turntable. There’s also a separate ground (“GND”) terminal for connecting the turntable’s ground wire.

How to connect a PP 2E to a NAD turntable?

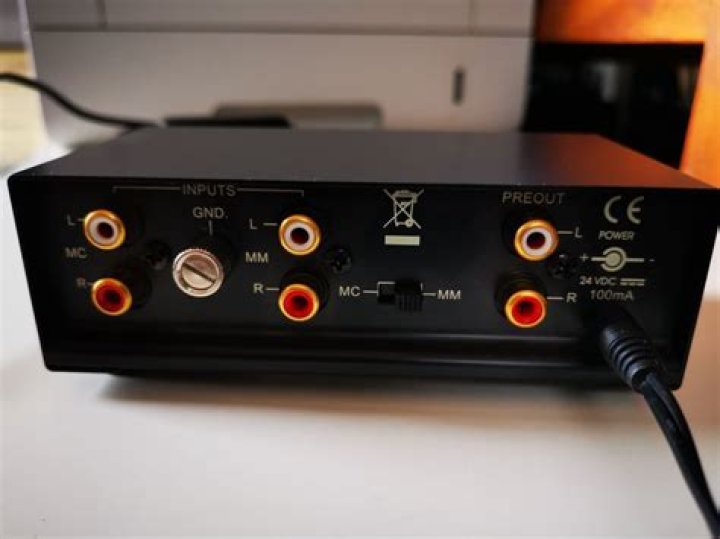

A CONNECT TURNTABLE TO PP 2e 1 Ensure all ancillary equipment is turned off and the NAD PP 2e not yet connected to its dedicated power Supply. 2 Connect the leads from the turntable to the appropriate input sockets on the back of the NAD PP 2e – MC for moving coil, MM for moving magnet cartridge.

How to connect power supply to NAD pp 2e?

Use the thumb screw terminal “GND” which provides the grounding. C CONNECT THE POWER SUPPLY TO THE PP 2e 1 Connect the dedicated Plug-in Power Supply to the NAD PP 2e (marked 23.5V). 2 Insert the Plug-in Power Supply to a live mains socket; the blue LED on the NAD PP 2e’s front panel will light up. Installation is now complete.

Can a phono preamp be used with a turntable?

“The PP 2e Phono Preamplifier offers superb performance in a clean and simple package. Perfect for the budget-conscious audiophile, the PP 2e’s moving coil/moving magnet input selector provides different phono cartridge options. This ultimately allows the PP 2e to be paired with any turntable,…

What should input sensitivity be for NAD PP-2 phono preamp?

But the big news is the moving-coil stage, specified at a nicely ‘average’ 100 ohms/180pf setting good for 60dB gain (m-m section is specified as 47k ohm/200pf and 35dB gain). Input sensitivity for the m-c stage is 0.2mV, which means that the PP-2 will handle most medium-to-high gain cartridges.
