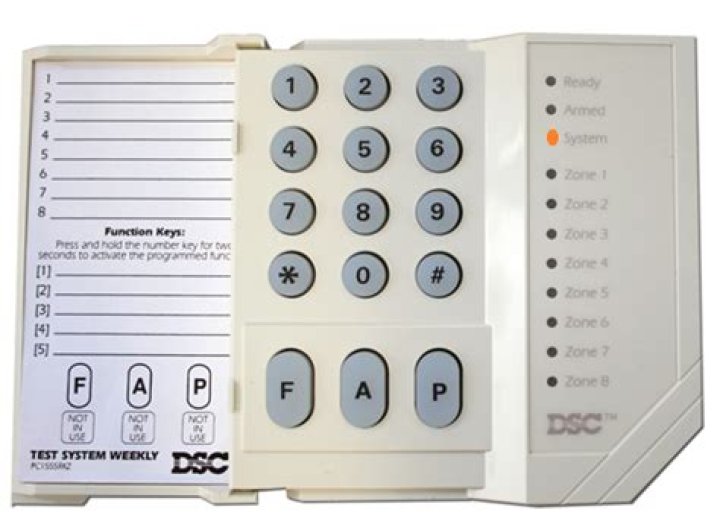

How do I find my zones on my DSC keypad?

Open Zones If you do not have a Ready light (*), press EXIT button until keypad beeps. LCD display will show what zone is open. Close door or window and check for ready light. If motion detector is open, stop movement and check for ready light.

How do I program my DSC keypad zone?

1. Step 1 – Keypad Assignment. To use keypad zones, each keypad must be assigned to its own slot (1 to 8).
2. Step 2 – Keypad Zone Definition. Zones must be defined before they will operate.
3. Step 3 – Keypad Zone Assignment.
4. Step 4 –Zone Assignment – Zones 1 – 8.
5. Step 5 – Enable Keypad Zone.

How do I disable a zone on my DSC alarm?

How to Bypass a Zone on a DSC Power Series Security Alarm Panel

1. The System Must be disarmed prior to proceeding.
2. Press the * Key.
3. Press the 1 Key.
4. Use the > key to scroll to the zone you wish to bypass.
5. Press the * Key on the appropriate zone.
6. A “B” should appear next to the zone when the system is bypassed.

How do I program DSC wireless contacts?

How do I program a wireless zone on the DSC 1616, 1832, and 1864 systems?

1. Enter section 898.
2. You will now trip the first wireless device that you want to add.
3. Check that the ESN on the device and the keypad match and then press *.
4. You will now need to enter a zone number.
5. Then the system will ask for a zone type.

How do I partition my DSC alarm?

1. Step 1 – Partition 2 Enable. To enable Partition 2, turn Option [1] ON in Section [201].
2. Step 2 – Partition 1 Zone Enable. At default, zones 1 – 8 are enabled on Partition 1.
3. Step 3 – Partition 2 Zone Enable. To enable a zone on Partition 2, turn ON the appropriate option in the correct Section.

Can a pk5500 program a DSc keypad?

If using one of the PK5500 fully alpha-programmable keypads, this keypad will show you everything the system is asking for, as well as display the number of digits required for that section. If using an older keypad or a PK5501, the keypad will not display anything and you have just the beeps to go by. Hi. I have a DSC PC1832system.

Is it easy to program DSC zone definitions?

Programming DSC Zone Definitions There are several times people get confused on programming their zone definitions into the DSC security systems. It is fairly easy to do, but can also be really confusing. Zone definitions basically tells the system how that zone is to respond to that device being triggered.

How many wireless zones does the rfk5501 support?

Input/Output terminal can be programmed to operate as a zone input, programmable output or as a low temperature sensor RFK5501 includes all of the same features and supports 32 wireless zones and 16 wireless keys

How to use the DSC alarm system quick user guide?

DSC Quick User Guide (PC1616/PC1832/PC1864) Page 1 DSC7 DSC Alarm System (PC1616 / PC1832 / PC1864) Quick User Guide Arming & Disarming the System Arming (Turning on) Close all sensors (i.e. close doors and windows). The Ready ( ) indicator should be on. Arm the system using either of the methods below.

How to program a zone on the DSC 1616, 1832?

If you reach the last zone in that section, you will automatically exit back out. Enter the appropriate section for the zone (s) that you are programming. 202 is for zones 1-8. 203 is for zones 9-16. 204 is for zones 17-24. Etc. You will now use numbers 1-8 to turn on/off the corresponding zone (s).

Which is the zone input on the rf5501-433?

The zone input can be used as any zone on the system, from 1 through 8. existing zone and the zone on the main panel will be disabled. Programming keypad zones on the RF5501-433 is a five-step process: Program Sections: To use keypad zones, each keypad must be assigned to its own slot (1 to 8).

If using one of the PK5500 fully alpha-programmable keypads, this keypad will show you everything the system is asking for, as well as display the number of digits required for that section. If using an older keypad or a PK5501, the keypad will not display anything and you have just the beeps to go by. Hi. I have a DSC PC1832system.

Which is the power panel for programming keypad zones?

PowerSeries – Programming Keypad Zones (RF5501-433 v5.0) PowerSeries – Programming Keypad Zones (RF5501-433 v5.0) Panels: PC580 (Power432), PC1555 (Power632) Overview: Each RF5501-433 has a ‘Z/P2’ terminal. This terminal can either be used as a zone input or a PGM output. The zone input can be used as any zone on the system, from 1 through 8.
