How do I connect multiple PTZ cameras to my DVR?

The easiest way to connect multiple PTZ security cameras is to Daisy Chain the data line. PTZ cameras have three cable connectors, data (to run the joystick), power, and video (which are usually residing in one cable). Data can be daisy-chained but power and video cannot.

How many IP cameras can a DVR handle?

Each port corresponds to a channel. Thus, a 16-channel DVR can handle 16 security cameras, an 8-channel can handle 8 security cameras, and so on. The number of cameras cannot really be separated from the number of channels the device can handle.

How many cameras can be connected to a DVR?

DVR systems available today tend to be capable of recording footage from up to 16 CCTV security cameras all at once – known as ‘multi-channel recording’. DVRs also tend to come with hard drives that enable you to store and back up the footage that has been recorded.

How do you control multiple PTZ cameras?

1. Press the Cam 1 button.
2. Hold down the Setup button. (
3. Set cam 1 to be VISCA, 9600 baud rate.
4. Select Cam Set and press Enter.
5. Press enter while the joystick is blinking on Cam 1.
6. You should now be able to select VISCA as the Protocol, and 9600 as the baud rate.
7. Repeat this for any additional cameras.

Can I connect PTZ camera to DVR?

PTZ Control Wires (RS485) Connect the RS485 wires from the extension cable to the RS485 connectors on the DVR, matching the polarity of the cables coming from the camera (the red wire connects to the + port, and the black wire connects to the – port).

Can we connect PTZ camera to DVR?

All analog PTZ cameras and some IP PTZ cameras have a RS485 connection that sends serial data control from the DVR recorder or PTZ joystick controller to the camera. If the cameras are connected improperly, then they will not be able to receive commands from the DVR.

Can OBS control PTZ cameras?

PTZ camera control system that integrates with OBS to allow for control of 1 or more cameras from a gamepad. Multiple cameras can be control from the same game pad, as well as camera switching in OBS.

How does a PTZ camera connect to a DVR?

To send the commands, it is necessary to connect a two-wire cable (positive and negative) from the back of the DVR to the PTZ camera.

What kind of cable do I need to connect a camera to a DVR?

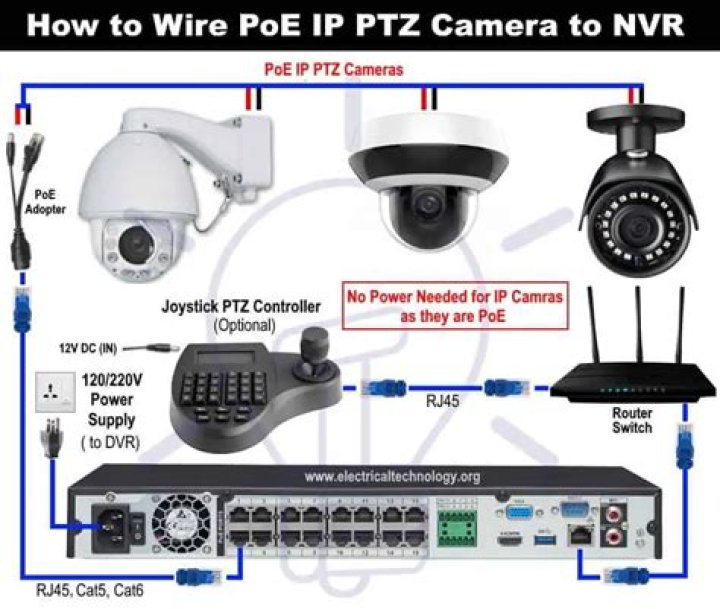

In addition, separate power cables are needed to power up the cameras. RS-485 cable can be used to connect the analog camera to the DVR or PTZ controller to control the movement of camera. IP PTZ Cameras has a range of up to 100 meters (300 feet) due to the slandered networking limitation.

What’s the range of an IP PTZ camera?

IP PTZ Cameras has a range of up to 100 meters (300 feet) due to the slandered networking limitation. As power and video signals can be transmitted via single PoE (power over internet) RJ45, Cat5, or Cat6e cable, the length cant be extended without additional devices.

How many cameras are in a CCTV system?

These 16 camera analog CCTV systems include eight analog video surveillance cameras, 8 channel hybrid DVR, pre-made cables, and power supplies. The DVR is our best selling iDVR-PRO. It works with analog CCTV cameras and HD-over-Coax cameras.

How to wire multiple PTZ to one DVR?

You can use several PTZ Block in series by connecting a second one to the terminals from the first one. This video assumes that you know how to configure the Baud Rate, Protocol, and ID on your PTZ cameras and your DVR. For PTZ cameras, please checkout our PTZ camera selection: Loading…

How does a CCTV video multiplexer work?

The multiplexers allow multiple video streams from indoor or outdoor surveillance cameras to be displayed in different grid views, picture in picture (PIP) views, or auto sequence through the cameras in grid or full screen modes. This allows video from all the cameras in your cctv camera system…

Is there a 16 channel NVR with 16 Poe?

This is a professional 16 Channel NVR with 16 PoE ports (Power over Ethernet) that make it as simple as possible to setup IP network cameras. Using a single network CAT5e/ CAT6 cable you can not only power our IP cameras, but also receive video, audio, and data.

How many video outputs does a 16 camera NVR have?

The 16 camera professional NVR also offers 2 video outputs (HDMI, and VGA) so you can connect up to 2 monitors displaying the same screen. Let’s not forget, this NVR also has 4 alarm inputs should you choose to tie in PIR motion sensors for precise on motion detection. Video backups are easy to do.
