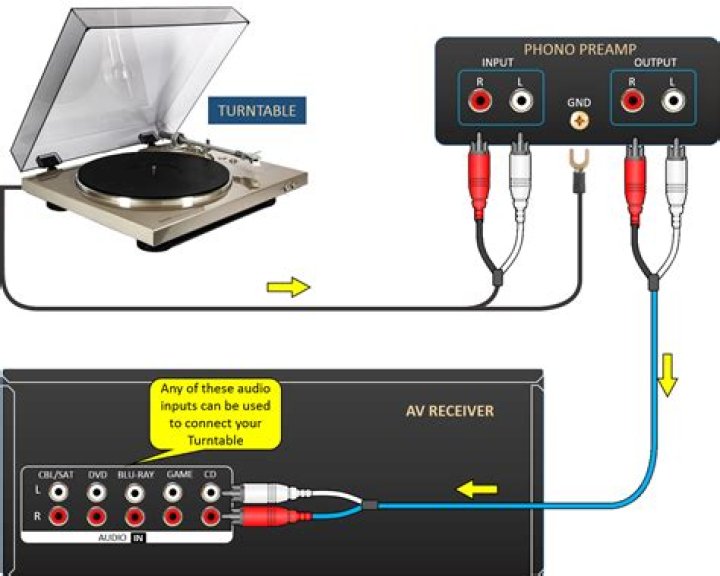

How do I connect a turntable to a built-in preamp?

To connect a turntable with a built-in preamp to powered speakers, you simply connect the RCA cable from the turntable to a LINE input on the powered speakers. To connect a turntable without a built-in preamp to powered speakers, you will need to use a standalone preamp between the turntable and the speakers.

What does it mean when a turntable has a built-in preamp?

A turntable preamp is an audio component that amplifies the signal from a turntable to a higher level, so that it can be received by an audio system, the same way it receives any other type of audio source, like a CD player, etc.

Does a preamp need to be grounded?

The preamp, being the heart of the system, should be grounded. The amps, for safety reasons, should be too, but for audio reasons (ground loop prevention) they should not.

Where does turntable ground wire go?

In general, a single turntable ground wire should be attached to the ground post or a chassis screw and the turntable on the back side of the amplifier or the receiver as well.

Does the audio Technica LP60X need a preamp?

If you’re new to vinyl, you may be surprised to learn some turntables, like the AT-LP60X, need to be connected to external speakers, but its natural signal can be too low for average speakers without additional amplification. That’s why we included a built-in switchable phono preamp in the AT-LP60X.

Is phono better than preamp?

The difference is there, but slight compared to the impact of your system’s other components. The phono preamp is just one component in your hi-fi system and it is nowhere near the most important. But even if you have an entry-level hi-fi system, a dedicated phono preamp has the potential to make a dramatic difference.

Will a preamp make my turntable sound better?

Which preamp do I need? It depends greatly on your budget and cartridge type. Your turntable may have a built-in phono stage, in which case you’re good to go. However, in many cases, you will find that an external preamp will sound better than your built-in option.

Where do I find the preamp on my turntable?

If you’re not sure, look on the back of the device. You should see a label that says phono, with a ground screw right next to it. If you do, it has a preamp. Most new models of receivers and amps don’t come with a built-in phono preamp, but they may have a label that says phono anyway.

Can a phono cartridge be grounded on a turntable?

Phono cartridges can be grounded by their own pin outs into the RCA connectors or to the headshell and through the tonearm and into the turntable. Adding a ground wire to such a system creates a ground loop.

Where is the grounding terminal on a turntable?

The grounding terminal on an amplifier or on a receiver (It depends on the structure of your turntable) is placed on the back of the turntable and it is also marked “ground”. You might see the cover of the terminal is different. It could be a metal post with a knurled shaft or it can be a simple screw terminal.

What does a phono preamplifier do for a turntable?

A phono preamplifier enhances the signal of a turntable needle to high levels and equalizes it according to an equalization curve defined by the RIAA (Recording Industry Association of America). It basically boosts it to the level and standards that other audio devices have. But with just a preamp, you won’t hear much yet.

Can a powered turntable connect to a phono preamp?

A few powered bookshelf speaker pairs, such as the Klipsch R-51PM, have phono inputs, so they can connect directly to turntables that lack phono preamps. But with most powered speakers, you need to use a turntable with a built-in phono preamp or connect an external phono preamp between the turntable and the speakers.

Do you need an Earth screw for a pioneer turntable?

Does you Pioneer Amp actually have an input specifically designated PHONO. Because if it doesn’t then you are going to need a Phono Equalization Pre-Amp between the Turntable and the amp. However, if it does have a PHONO but no earth screw, you can simply use one of the chassis screws that holds the amp’s cover on.

Do you need a ground cable for a turntable?

Turntables without a built-in phono preamp also require a ground cable between the turntable and the phono preamp (or the receiver or speakers with a built-in phono preamp) to eliminate any potential hum or noise between components. This can be a separate ground cable or one combined into the audio cables.

How much does it cost to get a preamp for a turntable?

If you do need an external preamp, you will need a set of cables (usually RCA cables) to connect to your audio system. Preamps have a wide range when it comes to build and sound quality. The cheapest preamp costs less than $50, the most expensive will cost over $500.
