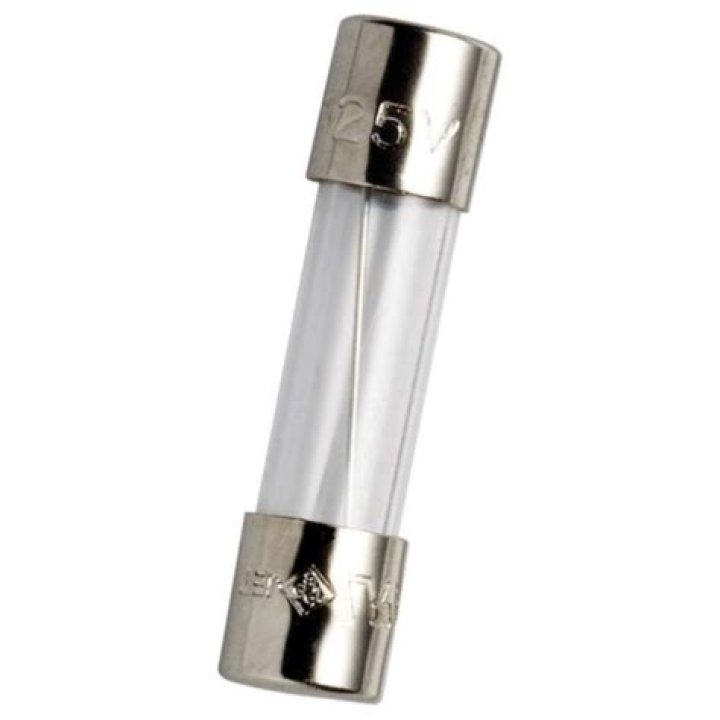

Can I use a 125V fuse instead of 250V?

For example, a 125V fuse can be replaced with a 250V fuse of equal amplitude while the voltage of the application is 250V or lower, but a a 250V fuse can’t be replaced with a 125V fuse of equal amplitude if the voltage of the application exceeds 125V.

What does 250V mean on a fuse?

You can substitute a higher voltage rating for a lower one, but not the “other way” around. The 250 volt rating means the fuse will safely open a 250 volt circuit without “exploding” or developing an interal arc which could maintain current flow longer than would be safe.

What is the difference between 125V and 250V fuse?

Once the fusible wire inside the fuse burns open, a 125V fuse is more prone to arc across the blown leads inside the fuse. The 250V fuse can sustain a higher voltage before it arcs over. So yes, you can use a 250V fuse in place of a 125V fuse as long as the current rating is the same.

How do you read fuse numbers?

The first letter(s) (TT, T, M, F, FF) tell you what type of fuse it is:

1. FF = Fast Fast. Very Quick Acting. ( also known as Anti Surge)
2. F = Fast. Quick Acting. ( also known as Anti Surge)
3. M = Medium. “Normal” or Very Short Delay.
4. T = Time. Time Delay or Slow Blow.
5. TT = Time Time. Long Time Delay or Very Slow Blow.

Does the voltage rating on a fuse matter?

Is the voltage rating important? Yes, very important! The voltage rating of the selected fuse must be greater than or equal to the circuit voltage. Since fuses have such low resistance, the voltage rating becomes critical only when the fuse is trying to open.

What does the T stand for on a fuse?

The ‘T’ stands for ‘Time lag’. This is the same as anti-surge. The. fuse can withstand brief surges in current such as you get when a. power supply starts up and its filters stabilise.

Can I use a 30 amp fuse instead of 20?

Do not use a fuse with a lower rating– don’t put a 20 amp fues in a 30 amp circuit–because it probably will blow prematurely. Conversely replacing a 20-amp fuse with one rated at 30 amps is dangerous because it may not blow soon enough and damage an electrical component or start a wiring fire.

What happens if you use a lower voltage fuse?

If a fuse is used with a voltage rating lower than the circuit voltage, arc suppression will be impaired and, under some overcurrent conditions, the fuse may not clear the overcurrent safely.

What is the part number of a Littelfuse fast blow fuse?

The below image is a Fast Acting fuse from LITTELFUSE with the following part number of 021706.3HXP. The Time vs. current curve will show the fast Acting feature of the fuse. The below image is showing the time vs. current curve of the above fuse. Each line representing different current ratings of the fuse.

What’s the difference between a fast acting fuse and a slow blow fuse?

But the major difference is a Fast Acting fuse will immediately disconnect the circuit as soon as the overcurrent is detected. For the Fast Acting fuse, it is an instant job.

Can you use two fuses in the same circuit?

The answer is NO. Because two fuses have different properties and different applications. These two fuses serve the same purpose that is disconnecting the circuit during overcurrent or short circuit situations but these two fuses serve this same purpose using different methods.

Can you use a 125v fuse instead of a 250V fuse?

Once the fusible wire inside the fuse burns open, a 125V fuse is more prone to arc across the blown leads inside the fuse. The 250V fuse can sustain a higher voltage before it arcs over. So yes, you can use a 250V fuse in place of a 125V fuse as long as the current rating is the same. Also, watch out for o Yes. In fact, it’s better…

What are the protection tables for Littelfuse fuses?

MOTOR PROTECTION TABLES TIME DELAY UL CLASS RK1 OR RK5 FUSE AMPERE RATING MOTOR RUNNING PROTECTION (USED WITHOUT PROPERLY SIZED OVERLOAD RELAYS) MOTOR FULL-LOAD AMPS BACK-UP MOTOR RUNNING PROTECTION (USED WITH PROPERLY SIZED OVERLOAD RELAYS) MOTOR FULL-LOAD AMPS MOTOR SERVICE FACTOR OF 1.15 OR GREATER OR WITH TEMP. RISE NOT OVER 40°C.

Where are the fuse ratings on a motor protection table?

If motor running protection will be provided by the fuses, select fuse ratings for correct type of motor from Motor Protection Table Columns headed, “Without Overload Relays.”

How long does it take to order a slow blow fuse?

Order in the next 6 hours, 37 minutes, and choose Two-Day shipping at checkout. This slow-blow glass fuse is rated 2.5-amp 250V to protect equipment and consumer electronics from short circuits and power surges. It meets the circuit-protection requirements of most household electronic equipment and is UL-listed. Package of four 1-1/4×1/4″ fuses.
