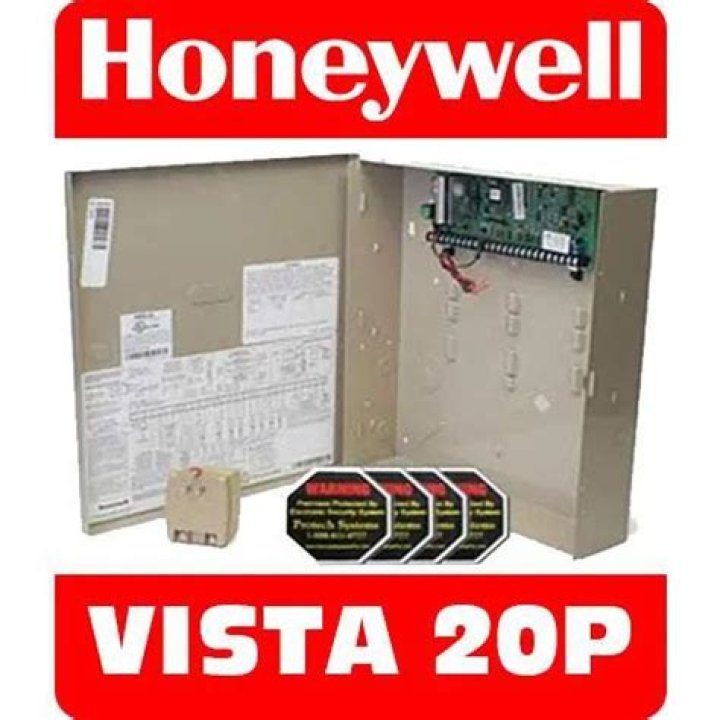

Can a smoke alarm be connected to an Ademco Vista 20p?

Fire zones use “normally open” type loops, so the EOLR always goes across the loop. The Ademco Vista 20P also supports 4-wire smoke alarms, but a relay will need to be added. This is to allow the panel to switch off power to the smokes during a “smoke detector reset” command.

Where are the zones on the Ademco Vista 20p?

The Ademco Vista 20P has the capacity for 8 on-board zones using basic connections. Each zone uses a 2,000-ohm (2K ohm) end-of-line resistor, which can be located at the alarm contact or inside the panel. Zone doubling is an optional connection scheme that this panel supports; it adds 7 more hardwired zones to panel with no additional hardware.

What are the colors of Ademco Security cable?

This cable is usually manufactured with the colors red, black, green, and yellow (or white) for the individual wire insulation. This makes it easy to keep track of the power and data pairs, as well as the polarity of each. Ademco deserves extra credit for designating these terminals by color, rather than by “in” and “out”.

What kind of transformer does Ademco Vista 20p use?

The Ademco Vista 20P is powered by a low-voltage transformer supplying 16-18 volts AC. Connect each lead of a 2-conductor wire to these terminals.

Where can I find the original Ademco alarm system?

Much of the original Ademco equipment can be found today in the Honeywell Security Museum, located in Melville, NY. This museum also showcases old Ademco product catalogs, early examples of door and window contactsand some of the first ever security systems.

What kind of sensors does Honeywell Ademco use?

Honeywell Ademco’s motion sensors offer passive infrared functionality, as well as certain models that offer dual-technology detection with microwave detection and passive infrared in one device. They also have pet sensitive devices and detectors that watch for motion in a 360 degree radius as they are installed on the ceiling.

Are there any Ademco door contact position switches?

These ¾” Door Contact Position switches (DCS) Work with All Access Control and Burglar Alarm Systems . . Only 18 left in stock – order soon. . . . . Only 18 left in stock – order soon. . . .

When did Pittway start making Ademco smoke detectors?

The company added ionization smoke detectors with its purchase of BRK Electronics in 1970. This cemented Pittway as one of the industry leaders for fire protection. As a result, Ademco’s sales increased from $2 million in 1963 to $96 million in 1981.
